The ProLED Bi-Color Panel is a pocket-sized natural light source. This portable panel effortlessly turns any scene into a work of art. With its stylish design and adaptable functions, this small yet mighty panel opens the door to limitless creative opportunities.

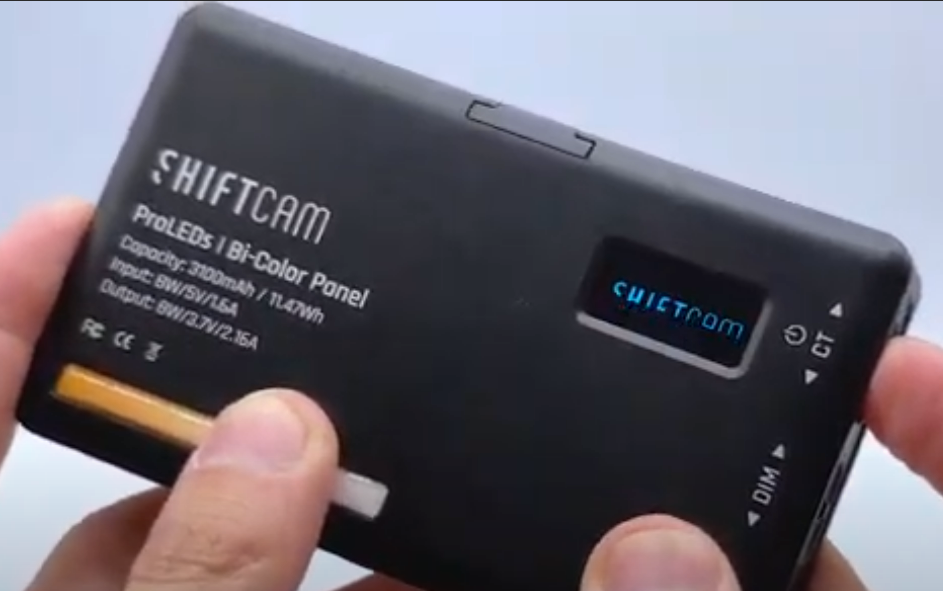

Step 1: Power On the ProLED Bi-color Panel.
Locate the CT selector thumbwheel on the upper right section of the ProLED. This thumbwheel serves a dual purpose as both the power on/off button and the color temperature adjustment control.
a. To turn on the ProLED, long-press the CT selector thumbwheel. Hold down the thumbwheel until the ProLED powers on. Once the ProLED is powered on, you can release the thumbwheel.
b. To turn off the ProLED, long-press the CT selector thumbwheel again. Hold down the thumbwheel until the ProLED powers off. Once the LED panel is powered off, you can release the thumbwheel.

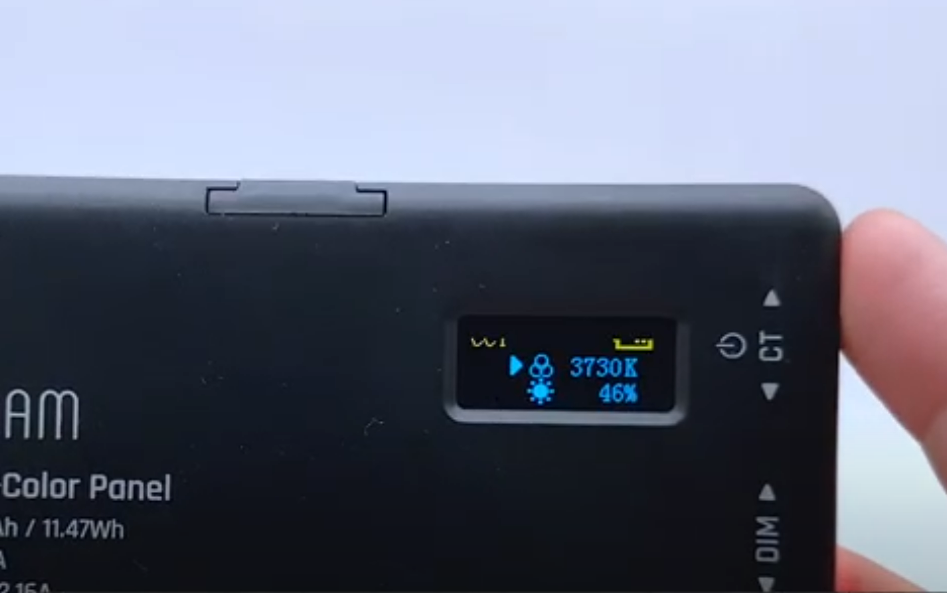

Step 2: Adjust the Color Temperature.
After powering on the ProLED, you can adjust its temperature by flicking the CT sector thumbwheel. The available range for adjustment is typically between 2500K and 6500K. As you rotate the thumbwheel up, the color temperature becomes cooler (more bluish), and as you rotate it down, the color temperature becomes warmer (more yellowish).

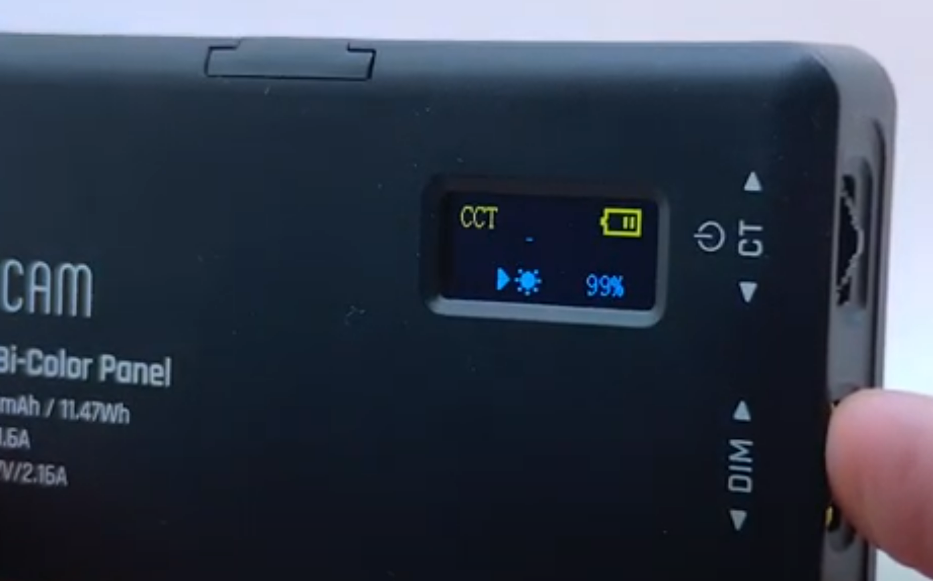

Step 3: Adjust the Brightness.
Using the DIM selector thumbwheel, you can adjust the brightness of the ProLED. To increase the brightness, rotate the DIM selector thumbwheel upwards. Conversely, to decrease the brightness, rotate the second thumbwheel downwards. The range for brightness adjustment is between 0% and 100%.
Step 4: Attach the Cold Shoe Mount Adapter to the ProLED Bi-Color.
a. Locate the 1/4" Tripod Screw on the ProLED. This screw is located at the middle bottom section of the ProLED.
b. Take the cold shoe mount adapter and align it with the 1/4" Tripod Screw on the ProLED.
c. Screw in the cold shoe mount adapter onto the 1/4" Tripod Screw in a clockwise direction. Rotate the adapter until it is securely tightened onto the ProLED.

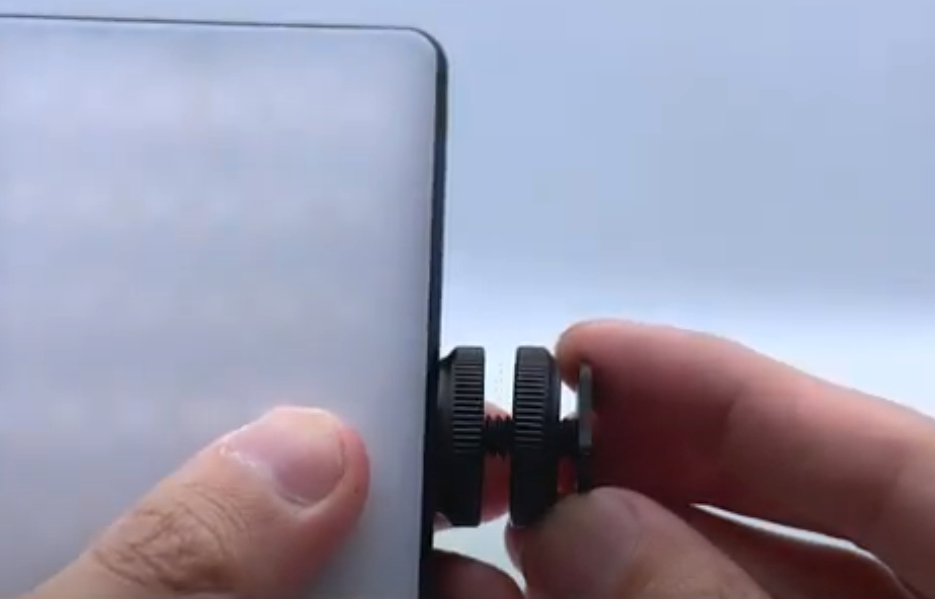

Step 6: Locking the ProLED Bi-color Panel in Place
a. On the cold shoe mount adapter, you will find two wheels. The upper wheel is used to lock the ProLED in place.
b. Once the cold shoe mount adapter is inserted into the ProLED, tighten the upper wheel by rotating it clockwise. This will secure the ProLED in place and prevent it from moving or rotating.

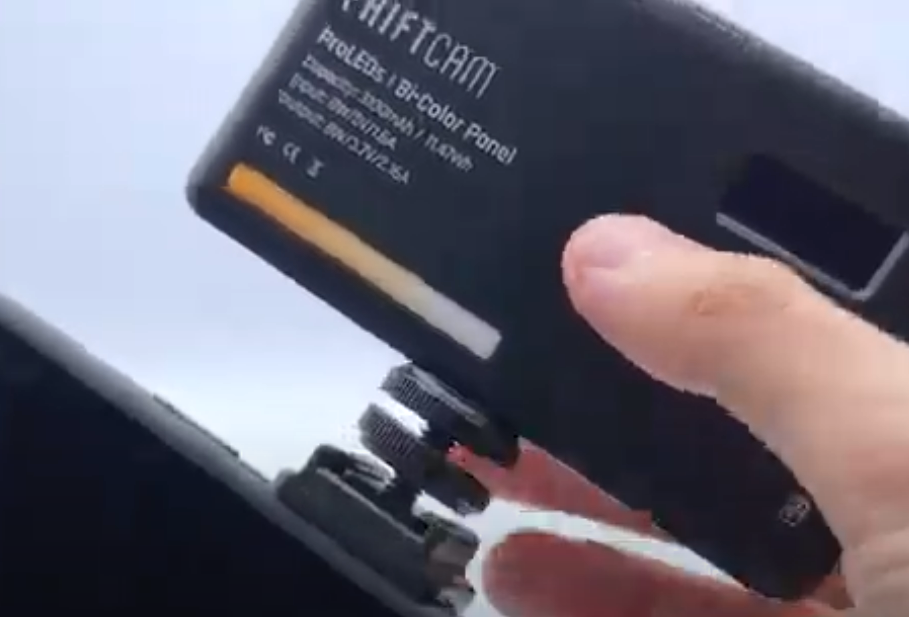

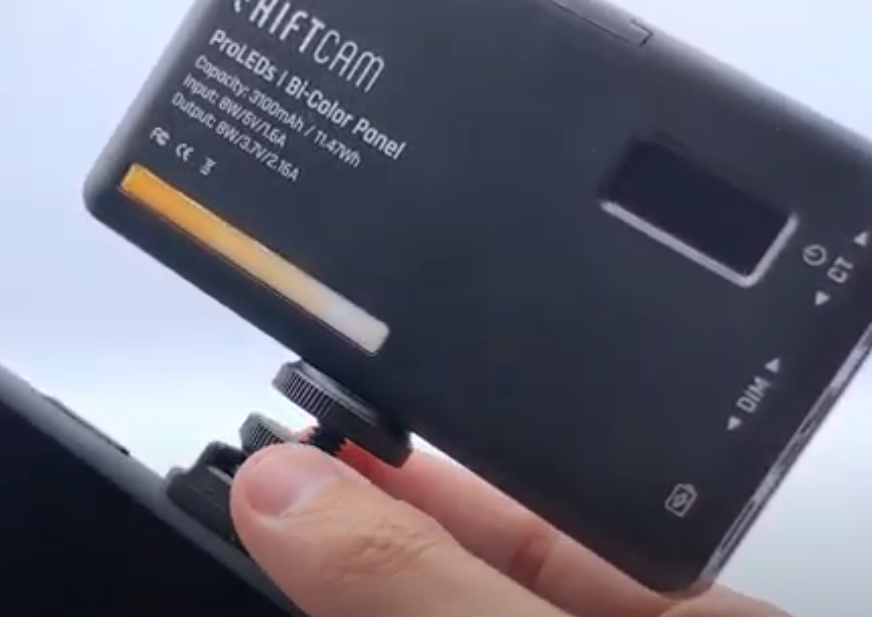

Step 7: Locking the ProLED Bi-color Panel onto the Cold Shoe Mount
a. On the cold shoe mount adapter, there is a lower wheel specifically designed to lock the ProLED onto the cold shoe mount.
b. Loosen the lower wheel by rotating it clockwise before inserting it into the cold shoe mount.
d. Once inserted into the cold shoe mount, tighten the lower wheel by rotating it counterclockwise. This will secure the ProLED onto the cold shoe mount, providing a stable and secure connection.
As your visual guide, you can watch the tutorial video available at the following link: Getting Started with your ProLED
Note: The ProLED Bi-Color Panel is equipped with a display screen that provides information about the battery level, color temperature, and brightness settings. The screen will show the current battery status, represented by a battery icon with a remaining charge indicator. It will also display the numeric values representing the selected color temperature and brightness levels.
